Garmin
LiveScope™ 2 HD Transducer
LiveScope™ 2 HD Transducer
Couldn't load pickup availability
You know us as Okie Dog Supply - but what you don't know is that we are just as crazy about fishing as we are about dogs!
The clearest sonar ever!
See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
Ultra high-definition imagery with better target separation
No black box needed, so install is easy
See highly detailed imagery at castable range and bottom track out to 125 feet
Sonar automatically turns off when the transducer is out of the water

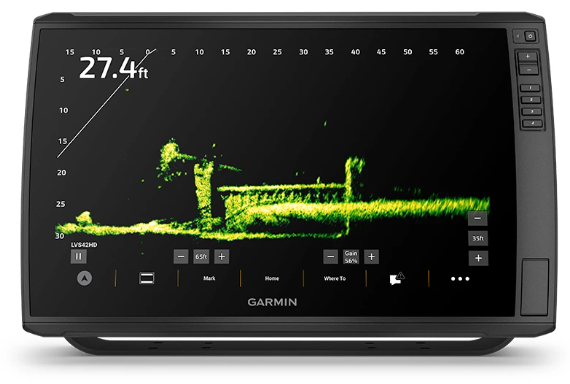

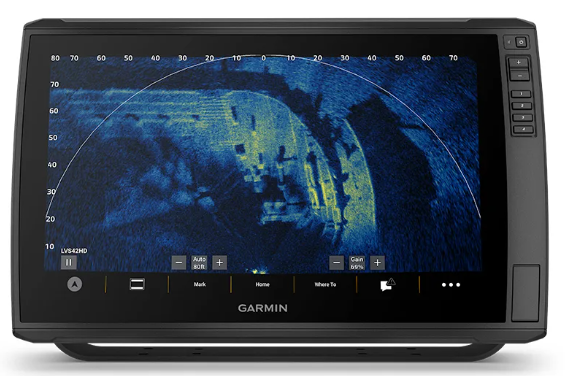

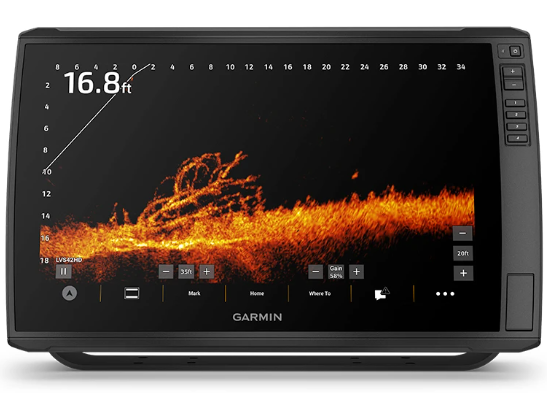

Wider angles in forward, down and perspective modes
In the box:

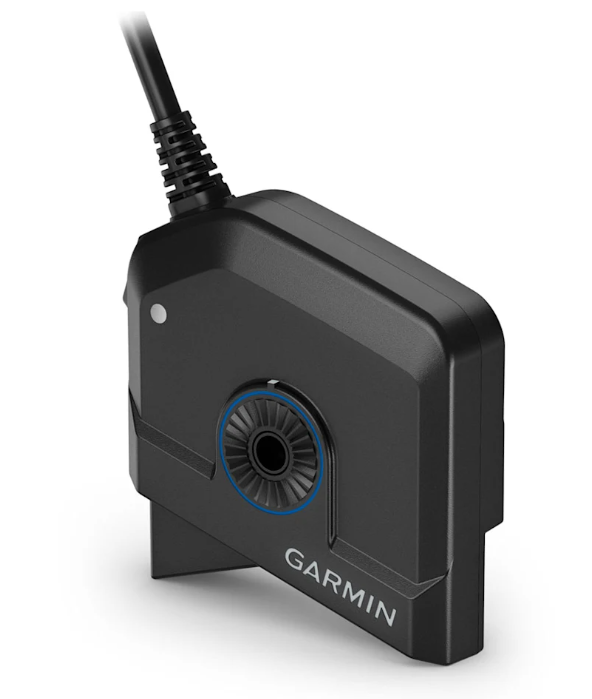

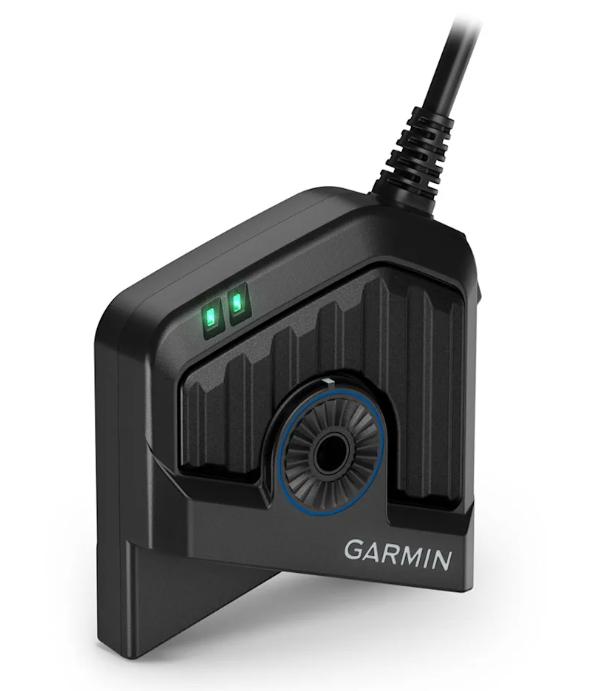

- LiveScope 2 LVS42HD transducer

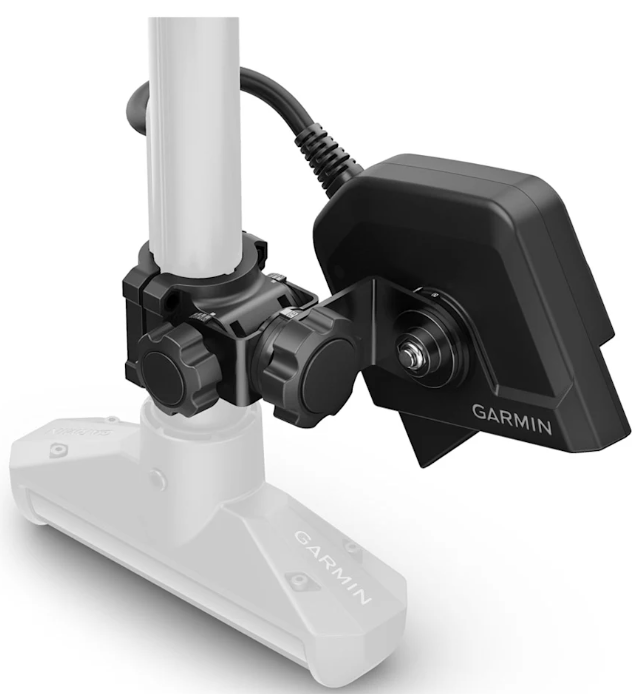

- Adjustable perspective shaft mount for LiveScope 2 transducers
- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
General |
|
| Transducer beamwidth | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| Weight |
3.62 lbs (1.646 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" |
Sonar Features |
|
| Frequency | 850 kHz-1600 kHz |
|---|---|
| Transmit power | 521 W |
| Maximum depth | Down and Forward: 125’ |
| Sonar type | Live |
| Target separation @ 100 ft | 12.6" |
| Target separation @ 30 ft | 3.8" |
| Perspective mode mount included | yes (adjustable angles) |
| Water detection transmit control | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power connection | yes (2-wire) |
Compatible Devices:
ECHOMAP™ UHD2 6" sv Chartplotters
ECHOMAP™ UHD2 7" sv Chartplotters
ECHOMAP™ UHD2 9" sv Chartplotters
ECHOMAP™ Ultra 102sv
ECHOMAP™ Ultra 106sv
ECHOMAP™ Ultra 122sv
ECHOMAP™ Ultra 126sv
ECHOMAP™ Ultra 2 10" Chartplotters
ECHOMAP™ Ultra 2 12" Chartplotters
ECHOMAP™ Ultra 2 16" Chartplotters
Force® Kraken Black Trolling Motor
Force® Kraken White Trolling Motor
Force® Pro Trolling Motor With Built-in GT56UHD-TR Transducer
GPSMAP® 1223
GPSMAP® 1223xsv
GPSMAP® 1243
GPSMAP® 1243xsv
GPSMAP® 1523xsv
GPSMAP® 1543xsv
GPSMAP® 1623
GPSMAP® 1623xsv
GPSMAP® 1643
GPSMAP® 1643xsv
GPSMAP® 723
GPSMAP® 723xsv
GPSMAP® 743
GPSMAP® 743xsv
GPSMAP® 8410
GPSMAP® 8410xsv
GPSMAP® 8412
GPSMAP® 8412xsv
GPSMAP® 8416
GPSMAP® 8416xsv
GPSMAP® 8610
GPSMAP® 8610xsv
GPSMAP® 8612
GPSMAP® 8612xsv
GPSMAP® 8616
GPSMAP® 8616xsv
GPSMAP® 8700 Black Box
GPSMAP® 9010
GPSMAP® 9010xsv
GPSMAP® 9013
GPSMAP® 9013xsv
GPSMAP® 9017
GPSMAP® 9017xsv
GPSMAP® 9019
GPSMAP® 9022
GPSMAP® 9024
GPSMAP® 9027
GPSMAP® 9210
GPSMAP® 9210xsv
GPSMAP® 9213
GPSMAP® 9213xsv
GPSMAP® 9217
GPSMAP® 9217xsv
GPSMAP® 9219
GPSMAP® 9222
GPSMAP® 9224
GPSMAP® 9227
GPSMAP® 923
GPSMAP® 923xsv
GPSMAP® 943
GPSMAP® 943xsv
GPSMAP® 9500 Black Box
Spy Pole™ Mount
