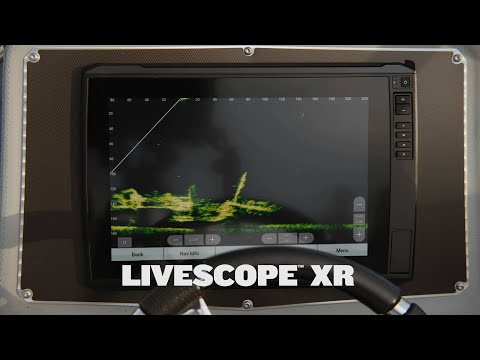

THE BEST OF THE BEST JUST HIT THE OPEN WATER with the Garmin Livescope XR System—the ultimate fish finder for saltwater and freshwater fishing.
You didn’t think it could get better, but it did with the extended range of the Garmin LiveScope XR System. It’s the latest in LiveScope fish finder technology, now for coastal and open-water fishing.
Explore the deep with an extended livescope range up to 500’ in freshwater and 350’ in saltwater.
Find fish circling your boat with clear views close around your hull.
Upgrade your current Garmin LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

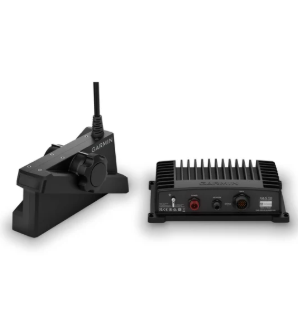

Choose the Garmin live scope XR system with Sonar Module to get:
Garmin LiveScope GLS 10 sonar black box
Garmin LiveScope XR LVS62 transducer
Perspective mount (LiveScope XR LVS62 transducer only)

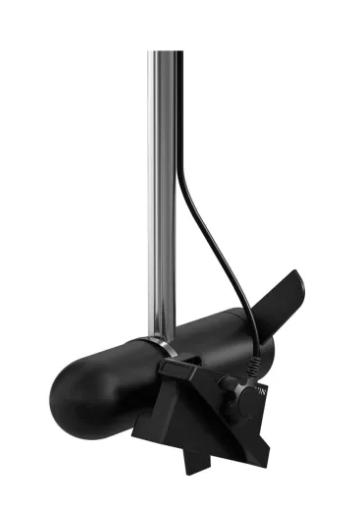

Trolling motor barrel mount
Shaft mount
Power cable
2 meter Garmin Marine Network cable (small connector)
Network adapter cable
Documentation

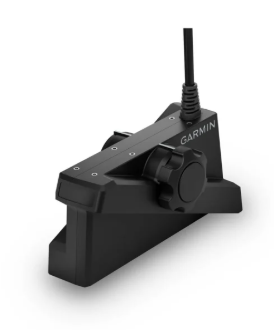

Choose the Garmin live scope XR system with No Sonar Module to get:
Garmin LiveScope XR LVS62 transducer
Perspective mount (LiveScope XR LVS62 transducer only)
Trolling motor barrel mount
Shaft mount
Power cable
Documentation
Specifications:
Transducer beamwidth 20° x 135°
Transducer cable length 20 ft
Transducer number of pins - 21
Dimension GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
Weight GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg)
Water rating IPX7
Temperature range
GLS 10 Black Box: Operating: -15 C to 70 C
LVS62 Transducer: Operating: 0 C to 40 C
Electrical Features
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A
Compass-safe distance 7" (0.18 m)
Sonar Features
Frequency 265 - 550 kHz
Transmit power 500 W
Maximum depth Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m)
Sonar Type Live
Target Separation @100' 22"
Perspective Mode Mount Included
Connections
Garmin Marine Network Ports
1 (small connector)
This best-selling fish finder system comes with free shipping to the lower 48. Shop now and let the fish come to you!
