Garmin Livescope Plus LVS34

You know us as Okie Dog Supply - but what you don't know is that we are just as crazy about fishing as we are about dogs! We paired the Livescope Plus LVS34 with the Echomap screen.

We installed the LiveScope Plus System with GLS 10 and LVS34 Transducer for our anniversary - then we went fishing! Wow!!!! What a difference. We fished in spots we would have normally avoided - and caught LOTS of fish. We were so successful, a tournament fisherman pulled alongside our boat and boarded to watch the action - then paid for a unit on the spot! Then later that same day, we found a sunken boat and the biggest pool of bass ever!

THE BEST OF THE BEST JUST HIT THE OPEN WATER
You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.

Most of you know us as Okie Dog Supply. What you may not know is we are just as crazy about fishing as we are dogs! We use this top-rated livescope system ourselves, paired with the Force Trolling Motor - it's an absolute game changer!

THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

• See images clearly with improved screen clarity, transducer sensitivity and target separation
• Scan surroundings with sharper images, reduced noise and fewer sonar artifacts
• Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer
• Get maximum contrast and clarity in your images with vivid color palettes
• Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

CLEAR VISION

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILIZATION

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES

Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

FORWARD MODE

Scout ahead of your boat to see what’s happening in real time.

DOWN MODE

Explore live views of the activity directly beneath your boat.

PERSPECTIVE MODE

See under the water with a view from your perspective above the water.

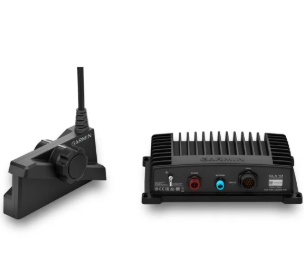

In The Box With Sonar Module:

• LiveScope GLS 10 sonar black box
• LiveScope Plus LVS34 transducer
• Perspective mount (LiveScope Plus LVS34 Transducer Only)
• Trolling motor barrel mount
• Shaft mount
• Power cable
• 2 meter Garmin Marine Network cable (small connector)
• Network adapter cable
• Documentation

In The Box Without Sonar Module:

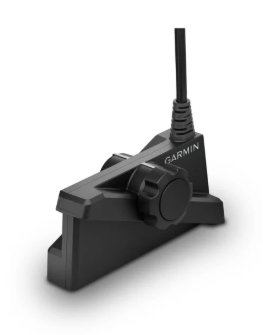

• LiveScope Plus LVS34 transducer
• Perspective mount (LiveScope Plus LVS34 Transducer Only)
• Trolling motor barrel mount
• Shaft mount
• Documentation

Specifications:

Transducer beamwidth    20° x 135°
Transducer cable length    20 ft
Transducer number of pins    21
Dimension
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)

Weight
GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS34 transducer: 2.25 lbs (1.02 kg)

Water rating    IPX7
Temperature range
GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C

Electrical Features
Power input    10-32 V
Power usage    21 W typical, 58 W max
Fuse    7.5 A
Compass-safe distance    4" (0.1 m)
Sonar Features
Frequency    530 - 1,100 kHz
Transmit power    500 W
Maximum depth    Down and Forward: 200’ (61.0 m)
Sonar Type    Live
Target Separation @100'    14"
Perspective Mode Mount Included
Connections
Garmin Marine Network Ports
1 (small connector)
