Diamond Deluxe Dog Box Style B Ships Free
It may take between 6-8 weeks to receive your dog box if it has to be built.
During Peak holiday times, it may take 7-9 weeks for delivery.
We do have boxes instock at Okie Dog Supply in Claremore, OK. Please contact us 918-633-3519 or mike@okiedogsupply.com if picking up locally.
- Once the order is placed - there are no refunds
- Diamond DOES NOT deliver to residential areas, so your box will be delivered to the nearest FedEx trucking hub closest to you
- To see the nearest Fed-Ex Freight hub, please CLICK HERE
- To Track Your Box, check your Fed-Ex Freight PRO number here: CLICK HERE
- THOROUGHLY inspect the dog box. This means: open doors, check hinges, vents, and top storage areas - do a complete and thorough check of the box
- If the box is damaged, immediately refuse the box, DO NOT SIGN ANYTHING, and keep pictures of the refusal and the damage to the dog box. Contact us immediately: 918-633-3519 so we can alert Diamond of the issues
- If you take possession of a dog box without thoroughly inspecting it, the dog box is YOURS. It cannot be refused or a claim made if you have removed it from the dock/semi

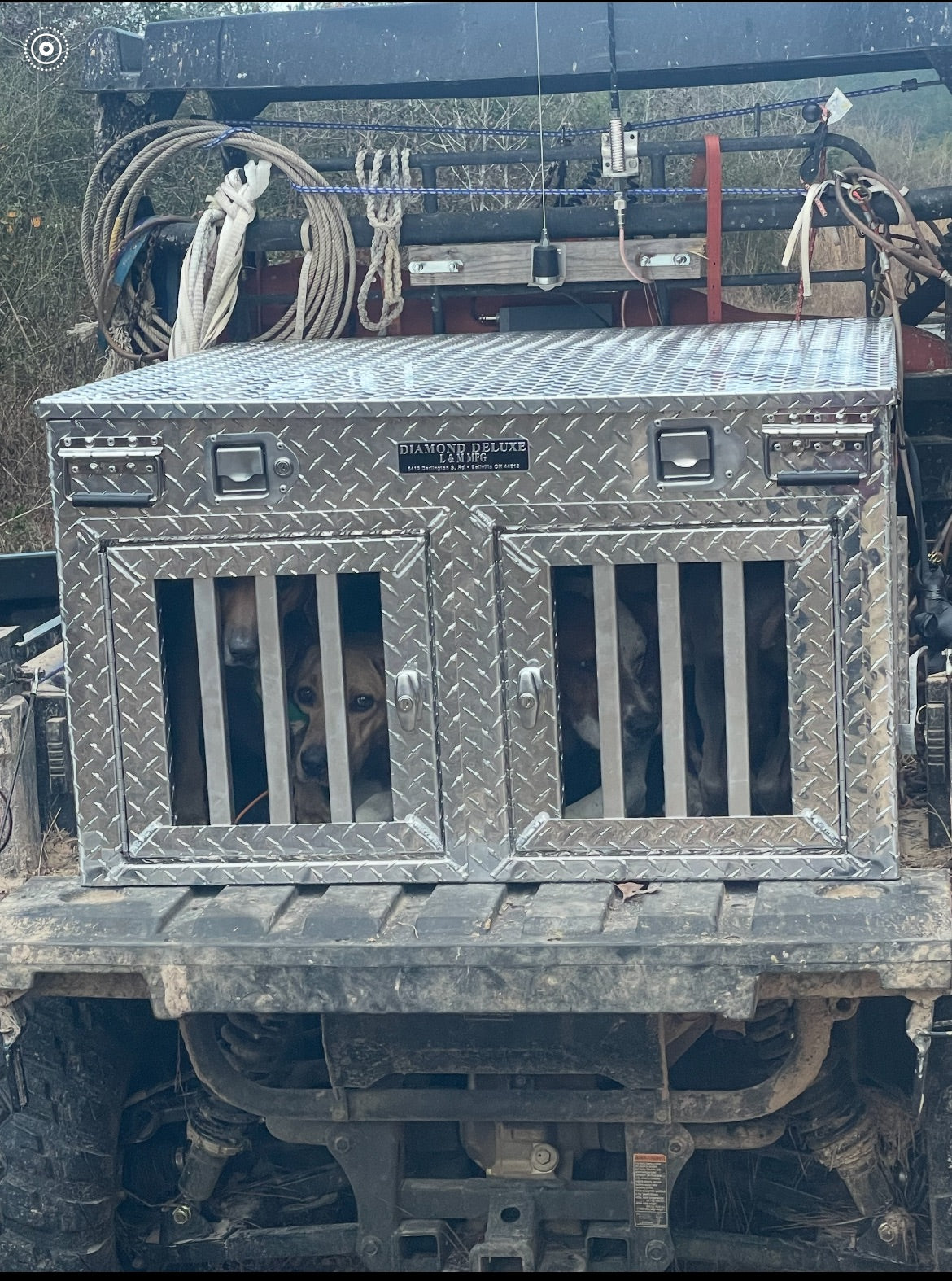

DIAMOND DELUXE B-Style is made with welded diamond tread aluminum it features carrying handles, locking full top storage, locking T-handles on the dog doors, corrugated plastic insulation on all exterior walls, solid aluminum divider panel, dual gas struts, all locks keyed alike, flat lid and slide covers on the vents. Aluminum is .063 thick (approximately 1/16").
DIAMOND DELUXE units have the largest vents of any dog box with the vent measuring 10” x 13½”. These units are extremely lightweight with the large truck box weighing only 100 pounds.
B-Style units without top storage have 20” height and units with top storage have 18” height in the dog compartment and 6” top storage. Available in 38” and 46” widths and lengths of 38” and 46”. The B-Style “Beagle Box” measures 38”W x 38”L x 22”T with 17.5” dog compartment height and 4.5” of top storage.

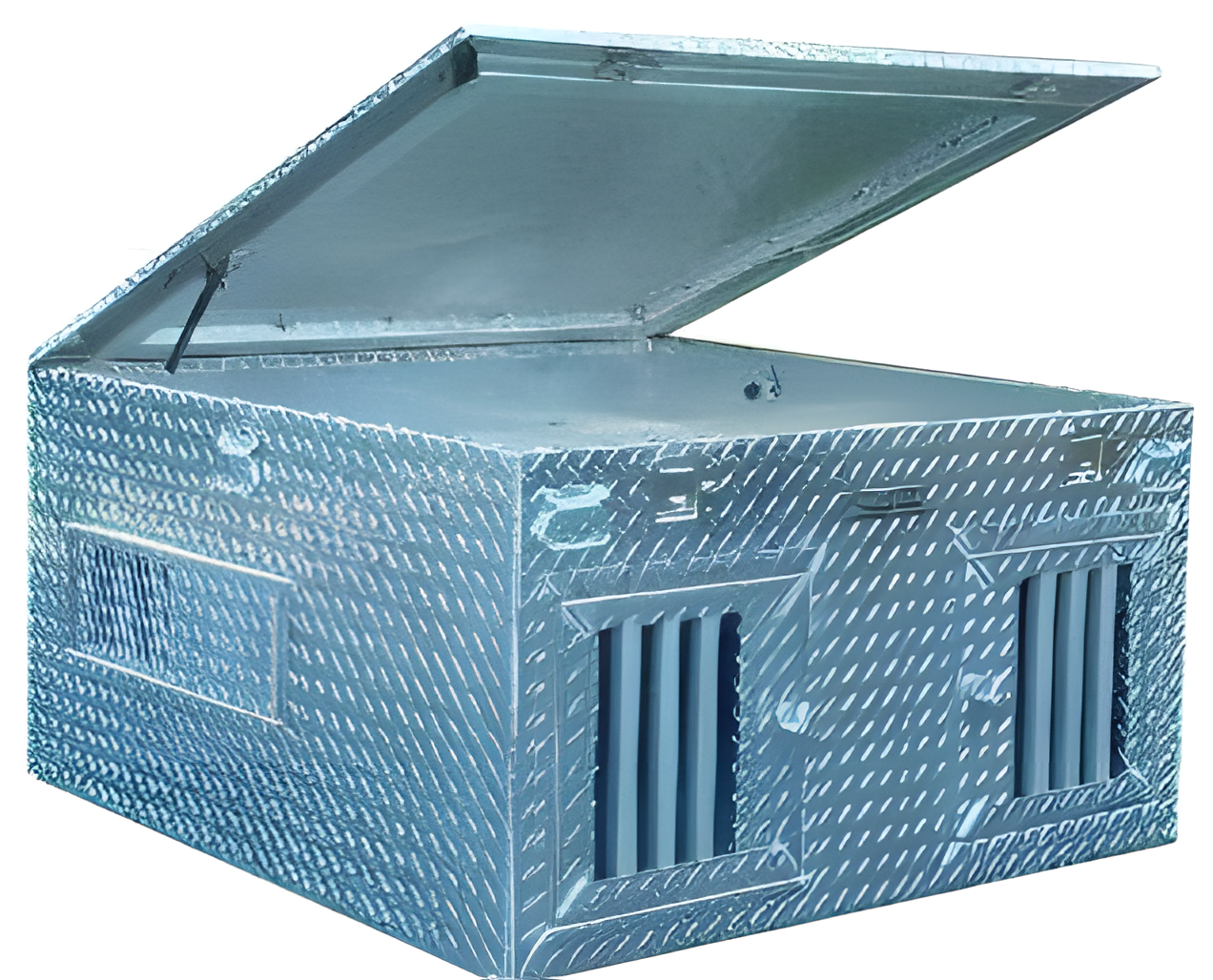

Top Storage is protected with carpet and has a leather pull strap!
For added protection and comfort - purchase Mule Brand Dog Box Pads!
Sizes and Models
The B-Style — Diamond Deluxe's best seller — comes in the same four footprints as the D-Style: 46" x 46", 46" x 38", 38" x 46", and 38" x 38", with two or three dog compartments. With top storage, the box stands 24" tall: an 18" dog compartment under 6" of locking storage. Without top storage, the box is 20" tall and the whole height is dog compartment. The B3322TS "Beagle Box" is the compact of the line at 38" x 38" x 22", with a 17.5" compartment and 4.5" of top storage — sized right for beagles and smaller hounds.
The B-Style Build
Where the D-Style runs a dome, the B-Style lid is flat, bent 90 degrees on all four sides. Dog doors carry locking T-handles, the divider is a solid aluminum panel, and the top storage is one open compartment. Like every Diamond Deluxe, the walls carry corrugated plastic insulation and the vents have slide covers, and all the locks are keyed alike.
Factory Options
Flush mount latches, winter door panels, rear vents, a dome lid, a roof rack, a 12-volt fan, a ventilated divider, and a top storage divider can all be added at the factory. Diamond Deluxe can also custom build to any size — call us and we will spec it with them.
B-Style or D-Style?
Pick the B-Style for standard-size dogs and the most box for the money. If you run extra large hounds or tall, leggy bird dogs, the Diamond Deluxe D-Style gives them a 21" compartment.
