Garmin
LiveScope™ 2 Transducer
LiveScope™ 2 Transducer
Couldn't load pickup availability
You know us as Okie Dog Supply - but what you don't know is that we are just as crazy about fishing as we are about dogs!

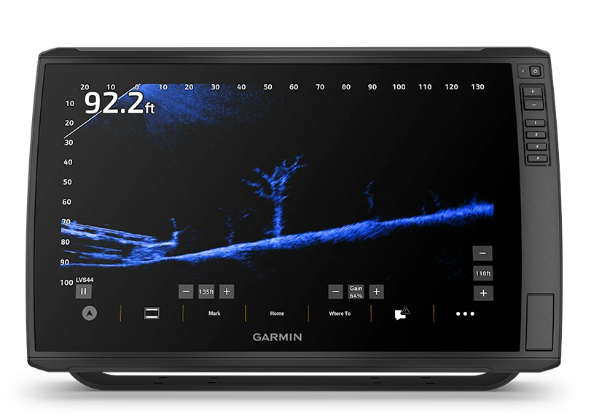

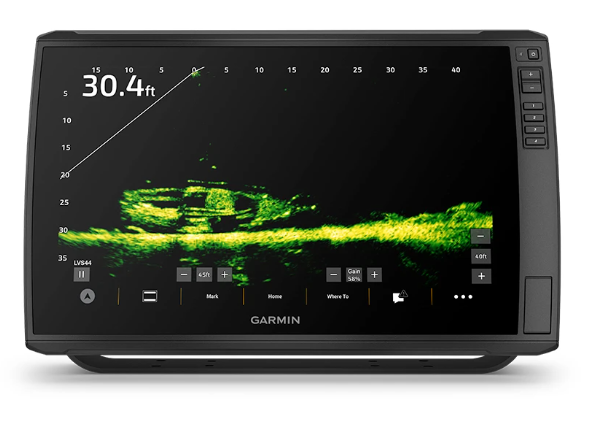

You’ve never seen live-scanning sonar of this clarity reach this far. LiveScope 2 offers increased resolution, integrated image stabilization and improved stitching, so you’ll clearly see fish and structure.
- Garmin's Farthest-Reaching, Clearest Sonar Ever
- Clear imagery with better target separation
- No black box needed, so install is easy
- See detailed imagery at castable range and bottom track out to 250 feet
- Sonar automatically turns off when the transducer is out of the water
- Wider angles in forward, down and perspective modes
In the Box:

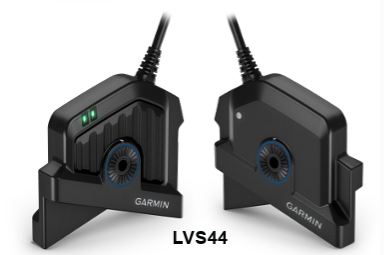

- LiveScope 2 LVS44 transducer

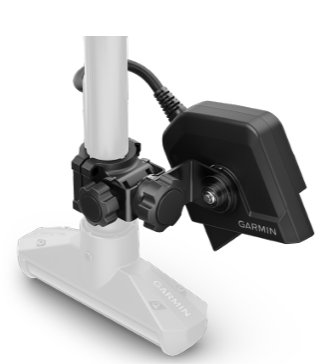

- Adjustable perspective shaft mount for LiveScope 2 transducers
- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
General |
|
| Transducer beamwidth | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 6.3” x 5.6” x 1.9” (16.0 x 14.2 x 4.8 cm) |
| Weight |
3.93 lbs (1.790 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" |
Sonar Features |
|
| Frequency | 600 kHz-1050 kHz |
|---|---|
| Transmit power | 392 W |
| Maximum depth | Down and Forward: 250’ |
| Sonar type | Live |
| Target separation @ 100 ft | 12.6" |
| Target separation @ 30 ft | 5.7" |
| Perspective mode mount included | yes (adjustable angles) |
| Water detection transmit control | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power connection | yes (2-wire) |
Compatible Devices:
ECHOMAP™ UHD2 6" sv Chartplotters
ECHOMAP™ UHD2 7" sv Chartplotters
ECHOMAP™ UHD2 9" sv Chartplotters
ECHOMAP™ Ultra 102sv
ECHOMAP™ Ultra 106sv
ECHOMAP™ Ultra 122sv
ECHOMAP™ Ultra 126sv
ECHOMAP™ Ultra 2 10" Chartplotters
ECHOMAP™ Ultra 2 12" Chartplotters
ECHOMAP™ Ultra 2 16" Chartplotters
Force® Kraken Black Trolling Motor
Force® Kraken White Trolling Motor
Force® Pro Trolling Motor With Built-in GT56UHD-TR Transducer
GPSMAP® 1223
GPSMAP® 1223xsv
GPSMAP® 1243
GPSMAP® 1243xsv
GPSMAP® 1523xsv
GPSMAP® 1543xsv
GPSMAP® 1623
GPSMAP® 1623xsv
GPSMAP® 1643
GPSMAP® 1643xsv
GPSMAP® 723
GPSMAP® 723xsv
GPSMAP® 743
GPSMAP® 743xsv
GPSMAP® 8410
GPSMAP® 8410xsv
GPSMAP® 8412
GPSMAP® 8412xsv
GPSMAP® 8416
GPSMAP® 8416xsv
GPSMAP® 8610
GPSMAP® 8610xsv
GPSMAP® 8612
GPSMAP® 8612xsv
GPSMAP® 8616
GPSMAP® 8616xsv
GPSMAP® 8700 Black Box
GPSMAP® 9010
GPSMAP® 9010xsv
GPSMAP® 9013
GPSMAP® 9013xsv
GPSMAP® 9017
GPSMAP® 9017xsv
GPSMAP® 9019
GPSMAP® 9022
GPSMAP® 9024
GPSMAP® 9027
GPSMAP® 9210
GPSMAP® 9210xsv
GPSMAP® 9213
GPSMAP® 9213xsv
GPSMAP® 9217
GPSMAP® 9217xsv
GPSMAP® 9219
GPSMAP® 9222
GPSMAP® 9224
GPSMAP® 9227
GPSMAP® 923
GPSMAP® 923xsv
GPSMAP® 943
GPSMAP® 943xsv
GPSMAP® 9500 Black Box
Spy Pole™ Mount
